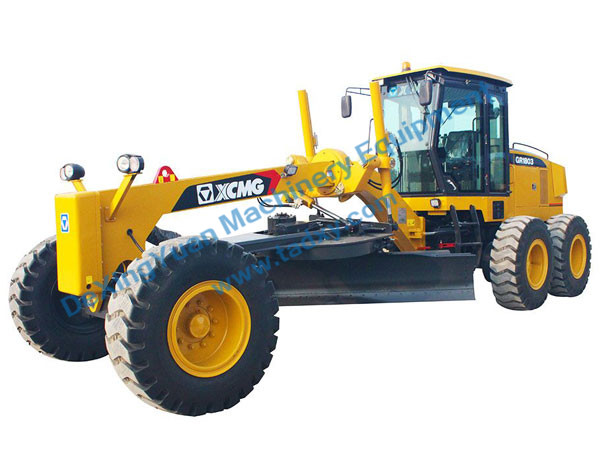

    GR1805 Motor Grader



    The XCMG GR Series Motor Graders are mainly used in ground leveling ,canalling , slope scraping ,earthmoving ,scarification or snow removal work on road, airfield ,farmland ,and so on .They are necessary construction machines for national defense engineering ,mine construction, town and country roads building ,and farmland improvement..

    Performance and characteristic

    ⊙New appearance design.

    ⊙The articulation frame is adopted and matched with the steering of the front wheel, With small turning radius，maneuvering and flexible.

    ⊙The electro－h(huán)ydraulic controls the power shift gearbox，with 6ahead gears and 3 back gears.

    ⊙The international matching hydraulic parts are adopted，with reliable operation.

    ⊙The motions of the blade are fully hydraulically controlled.

    ⊙The rear axle is the three－section driving axle which is provided with the NO－SPIN self－locking differential mechanism.

    ⊙The manipulation table and seats are adjustable. The arrangement of the manipulation handle and instruments are reasonable，with convenient application，and the comfort of driving is improved .

    ⊙The cab is grand and nice，with wide eyeshot and good sealing .

    ⊙The front bulldozing plate， rear scarification device，front scarification harrow and automatic leveling device can be added .

    Main Technical Specification










































































































    Basic specification

    Engine model

    SC9DK200.1G3

    Rated power/speed

    147kW/2000rpm

    Dimension(LxWxH)

    8900×2625×3420mm

    Operating weight(Standard)

    15400kg

    Performance specification

    Travelling speed ,forward

    5、8、11、19、23、38 km/h

    Travelling speed ,reverse

    5、11、23 km/h

    Tractive force(f=0.8)

    80KN

    Max. gradeability

    30%

    Tire inflation pressure

    260 MPa

    Working hydraulic pressure

    20 MPa

    Transmission pressure

    1.3～1.8MPa

    Operating specification

    Max. steering angle of front wheels

    Left / Right 48°

    Max. lean angle of front wheels

    Left / Right17°

    Max. oscillation angle of front axle

    Up / down15°

    Max. oscillation angle of balance box

    Before / after15

    Frame articulation angle

    Left / Right27°

    Min. turning radius using articulation

    7.3m

    Blade

    Maximum lift above ground

    450mm

    Maximum depth of cutting

    500mm

    Maximum blade position angle

    90°

    Blade cutting angle

    28°—70°

    Circle reversing rotation

    360°

    Moldboard width X height

    3965×610mm

    Service refill capacities

    Fuel tank

    280L

    Engine

    24L

    Coolant

    50L

    Transmission

    38L

    Balance box

    46L

    Drive axle

    28L

    Hydraulic oil

    110L

    Worm wheel box

    2.5L

    GR1805 Motor Grader  2017-7-10 This article has been read 1624 Secondary
